Drill Bit Selection Strategies for Oil & Gas Drilling

Selecting the optimal drill bit is crucial for efficient, cost-effective drilling. Engineers match bit type and design to formation properties and well objectives to minimize drilling cost per foot. Key considerations include rock hardness (compressive strength), abrasiveness, and formation drillability. Weaker (low-strength) rocks are more drillable, while abrasive formations wear bits faster. Drilling objectives such as maximizing ROP, maintaining trajectory, and operational constraints (BHA configuration, rig power, hole size) play a significant role. The economic considerations are important to ensure cost-effective operations.  For example, high-day rate operations can justify premium bits for faster drilling, whereas lower-cost sections may use simpler bits. In all cases, the goal is to match bit features (tooth type, gauge, hydraulics) to formation characteristics and drilling plan to reduce trips and optimize footage per bit.

1.     Bit Design Considerations                                                                                                       Your Comments

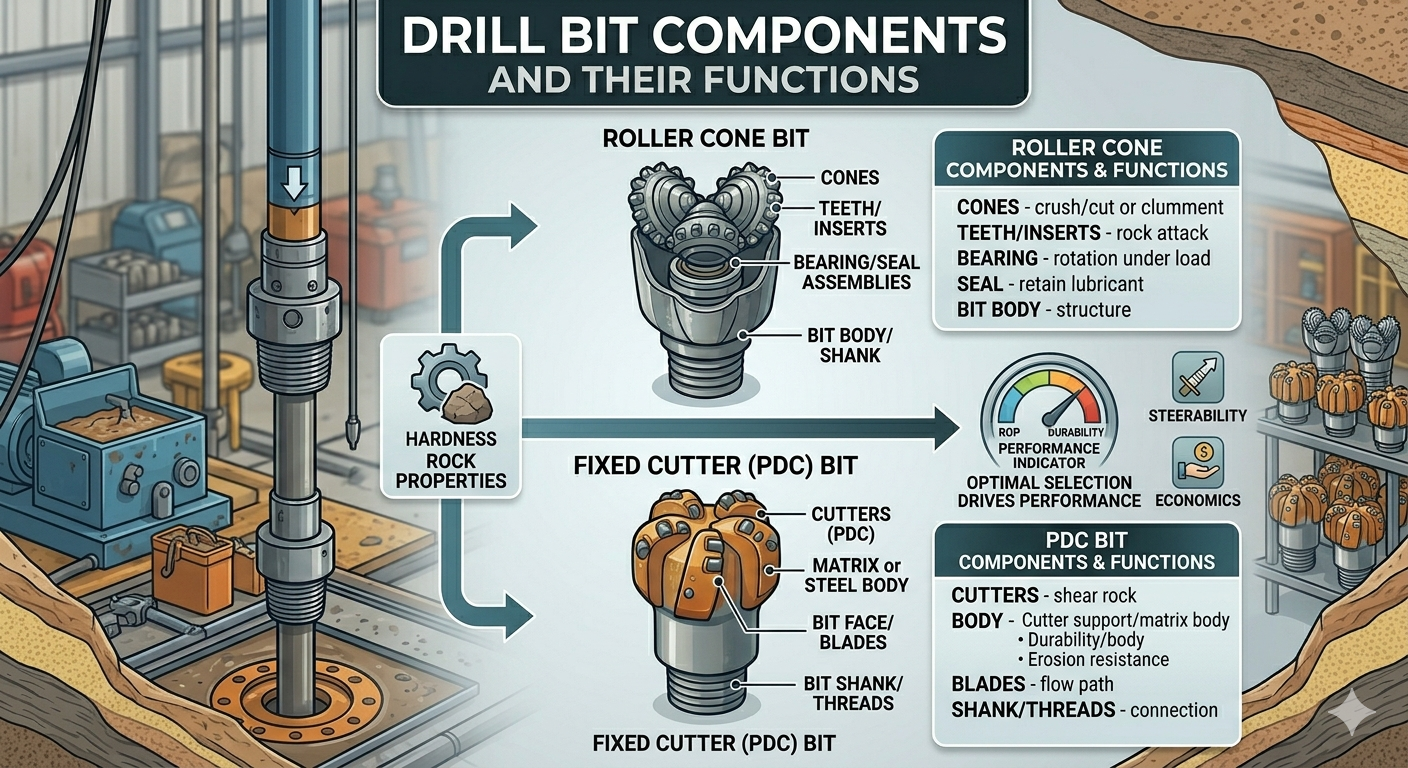

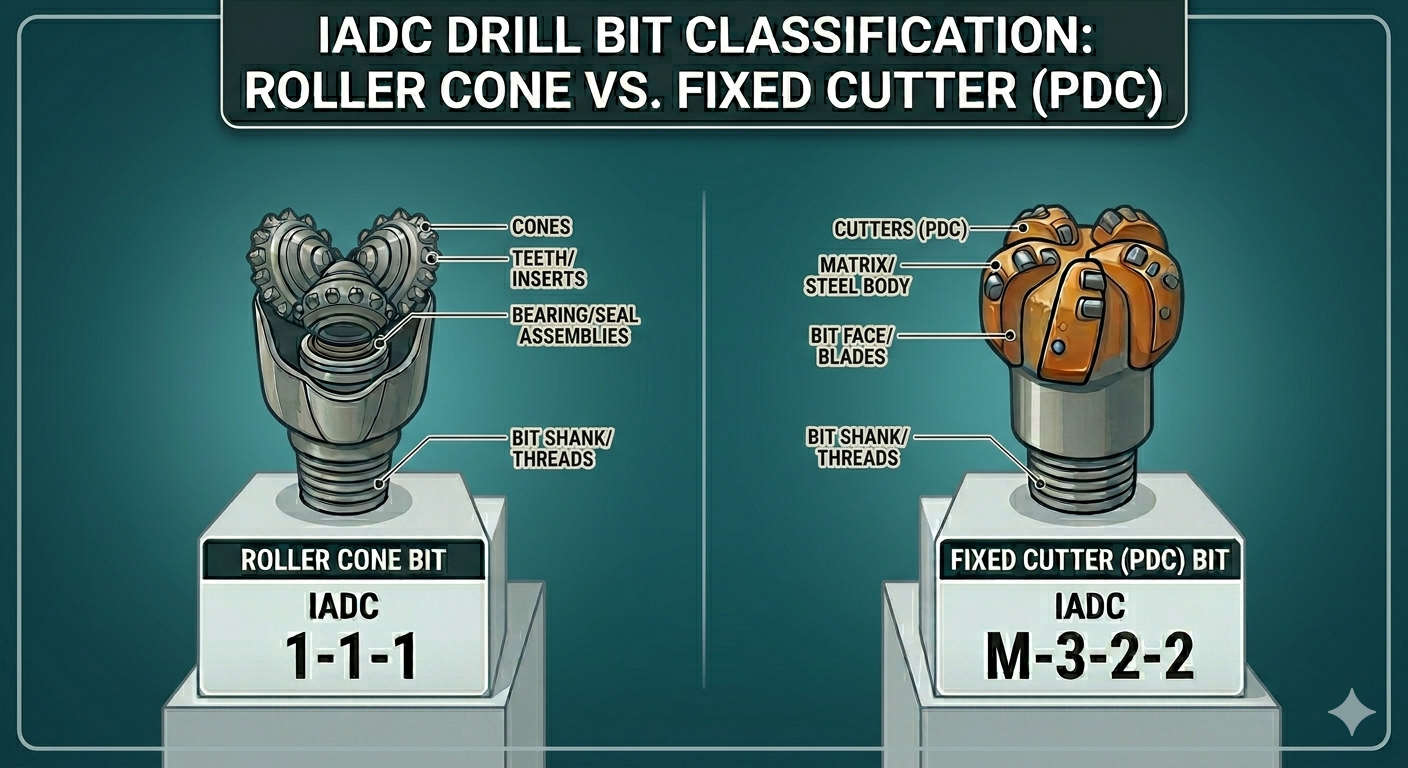

Drill bits differ mainly by their design, cutter type, and arrangement. Roller-cone (tri-cone) bits have rotating cones with either steel milled teeth or tungsten-carbide inserts (TCI). The milled-tooth cones excel in soft, unconsolidated formations, while TCI cones handle harder, abrasive rock. PDC (fixed-cutter) bits use polycrystalline diamond elements to shear rock, offering high ROP in medium hard formations, and do not have moving parts. Diamond-impregnated bits (polycrystalline diamond dispersed in a matrix) grind hard or abrasive formations. Key design parameters include:

  • Cutter Material and Shape: The PDC cutters with blunt back-rake yield longer life but lower instantaneous ROP, whereas aggressive cutters increase penetration rate at the expense of durability. Steel-body bits with large milled teeth are more suitable for soft formations, whereas tungsten carbide or PDC cutters suit medium-hard formations. The specialized hard-facing or anti-balling coatings may be used on steel cones for drilling in gumbo shale formations.

  • Gauge Length and Pad Design: Gauge length controls stability. Longer gauge length (≥3–4 in.) stabilizes vertical drilling and resists side forces, but shorter gauge bits are preferred for aggressive buildup (high dogleg) because they respond faster to steering inputs. A bit should ideally cut a full-gauge hole to maintain BHA stability.

  • Blade Count and Cutter Layout: More blades and cutters tend to smooth torque swings and improve hole quality. High blade-count PDC bits produce less vibration and near-gauge boreholes. In contrast, highly aggressive bits (low blade count, steep gauge) may achieve faster ROP and build rates but often drill a spiraling, off-gauge hole that hinders BHA performance. However, modern bit designs with advanced cutter placements and gauge pads can mitigate these effects.

2.     Bit Selection by Drilling Stage                                                                                             Your Comments

  • Surface Section (Soft Clays/Sandstones): The upper section often encounters unconsolidated sand, gravel, and clay. Steel-tooth roller cone bits (milled tooth) are reliable and cost-effective in these soft, nonabrasive formations. They gouge loose material efficiently with large tungsten-carbide teeth. Alternatively, a steel-body PDC bit with large cutters can maximize ROP in soft layers. Both bit types should have long gauge lengths and large junk slots to avoid balling.

  • Intermediate Section (Shale, Limestone, Interbedded): Mid-section lithologies (mixed shale, siltstone, limestone) are tougher. TCI roller-cone bits are often selected for their ability to fracture more abrasive rock and handle bit bounce in shale and are commonly used for interbedded brittle formations. However, modern fixed-cutter bits are increasingly applied here. Optimized PDC bits with advanced cutter geometry can drill uniform limestone or moderately hard shale efficiently, provided no sudden hard stringers exist. Due to continuous shearing, PDC bits often outperform tri-cone bits in clean, carbonate-rich zones (limestone/dolomite).

  • Production Section (Hard/Abrasive): The deepest formations are usually the hardest (hard sandstones, quartz-rich or abrasive rock). For these, impregnated-diamond bits or high-end PDC bits are chosen. Impregnated bits contain fine diamond grit in a steel or tungsten matrix and excel at slowly grinding ultra-hard or abrasive formations. They are ideal when bit life is more important than high instantaneous ROP, such as deep sections where trips are extremely costly. Advanced PDC bits, multi-row PDC designs with robust cutter materials (thermally stable PDC or large-diameter cutters) can handle hard rock with higher ROP than traditional impregnated bits, although with increased wear. In summary, choose the most durable bit, either a premium PDC or an impregnated-diamond bit tailored for high abrasion.

3.     Directional Drilling and Bit Steerability                                                                    Your Comments

Directional wells introduce additional bit requirements. For Rotary Steerable Systems, two steering principles govern bit selection, point-the-bit and push-the-bit.

  • Push-the-Bit Systems: These RSS (rotary steerable) tools apply lateral force to the bit’s gauge with pads, forcing the bit to cut sideways. They typically require very short gauge bits (often <2″) with active side-cutting structure. Short-gauge, aggressive bits in push-mode respond quickly to steering commands and produce high instantaneous doglegs, but excessive side-loading can also cause the hole to spiral or form ledges.

  • Point-the-Bit Systems: These RSS tools tilt or “bend” the bit face in the desired direction with minimal side force. In point mode, longer-gauge bits are advantageous because the bit face directs the well path, and little lateral skidding occurs. The trade-off is slower response to course changes: point-bit RSS typically achieves lower dogleg severity than push-bit systems. Many point-the-bit assemblies use moderately long gauges to stabilize the bit.

  • Gauge Length & Cutter Aggressiveness: The gauge length affects toolface control. A long-gauge bit (3–4 in.) resists walking and helps stabilize the trajectory in vertical or tangent sections. In high-build sections (e.g., curve zones), short-gauge and “laterally aggressive” bits are often desired to turn the hole quickly. Bit cutter aggressiveness also influences steering. High aggressiveness increases torque sensitivity, leading to stick-slip and a lack of toolface control. Thus, directional bits often incorporate more blades, curved profiles, and depth-of-cut limiters to smooth torque. Increasing the cutter back-rake or adding chamfers on PDC bits, for example, reduces reactive torque spikes, making toolface orientation more stable.

  • PDC Cone Cutters for Improved Steerability: Recent bit designs use cylindrical or “cone” PDC cutters to moderate aggressiveness. Bits with thermostable PDC cone cutters have demonstrated higher ROP and lower unwanted coring in hard layers. These cone cutters distribute cutting energy more gradually and reduce torque fluctuations, which aids steerability. Adding more gauge cutters or backup rows can keep the bit centered, while small cone cutters on the blades handle formation transitions with less vibration. In directional sections, these design tweaks help the driller maintain toolface control and maximize hole-building efficiency.

4.     Optimizing Bit Performance and Efficiency                                                          Your Comments

Engineers look beyond initial selection to bit performance metrics and adaptability to optimize overall drilling efficiency. Key strategies include:

  • Maximize Footage Per Bit (Bit Life): Choose bits and parameters to drill the longest run possible without tripping. This often means sacrificing some short-term ROP for durability. Investing in premium bits is justified for high-cost scenarios (deep, offshore, or high-day rate). Multi-row PDC bits with secondary (“backup”) cutters combine efficiency and longevity. The primary cutters aggressively remove soft rock, but the backup cutters engage and reduce aggressiveness as wear progresses or harder zones are reached. This self-adjusting behavior lets one bit drill complex intervals that would require multiple bits. In tests, these designs maintained faster average ROP and extended bit life through mixed lithology.

  • Balance ROP and Drilling Cost: The ultimate selection criterion is minimizing cost per foot. In practice, this means continuously monitoring the rate of penetration (ROP), torque, and vibration. A bit that stalls or induces stick-slip may drill less net footage despite high instantaneous ROP. Drillers use real-time data (WOB, torque, MWD measurements) to adjust WOB and RPM proactively. If the conditions justify, bit can be replaced with this insight. For example, if WOB needs to be reduced to control torque, switching to a bit with higher cutter density can regain ROP and reduce drilling time.

  • Maintain Hole Quality and Cleaning: Poor hole quality (ledges, spirals) slows drilling and poses issues in running casing and completions. Selecting bits that drill near-gauge holes, reducing tortuosity, and easing BHA tripping should be considered. Higher blade counts, proper junk-slot area, and optimized hydraulics help clear cuttings. Engineers also ensure that bit hydraulics (nozzle size, flow rate) match the bit to maintain bottom-hole cleaning. Adequate hydraulic energy (high HSI) prevents bit balling and choking, especially in sticky or poorly consolidated shale.

  • Adapt to Real-Time Conditions: Lithologies often change unpredictably. A smart bit program uses feedback to adapt. If drilling unexpectedly slows or vibrations rise, the team may run a different bit type (e.g., swap a PDC for a cone bit in a shale stringer) or modify the bottom hole assembly (add a shock sub, stabilizer). New bit selection software and formation evaluation tools (DWMR, LWD) can predict upcoming rock mechanics and suggest bit designs before tripping. In summary, blending pre-drill planning with field data ensures the chosen bit and its parameters are continually optimized for the encountered conditions.

By systematically considering formation properties, drilling objectives, and design variables, drilling teams can select bits that deliver high ROP and long life across all well sections. Integrating these criteria with directional drilling requirements and real-time performance feedback yields the smoothest, most cost-effective drilling operations.
