Subsea Hydraulic Intervention and Stimulation Systems
By Grant Pierce, Intervention Performance Ltd.
Add Your Comments and Additional Information
As subsea oil and gas fields mature, reservoir pressure depletion, formation damage, scale deposition, water breakthrough, wax buildup, and declining permeability can significantly reduce well productivity. In many cases, restoring or improving production requires some form of subsea hydraulic intervention or stimulation treatment. These operations are particularly important for deepwater and ultra-deepwater developments where mobilizing a drilling rig can be extremely expensive and operationally challenging.
Hydraulic intervention systems enable operators to pump stimulation fluids, chemicals, acids, or treatment packages directly into subsea wells without requiring a full drilling or workover rig. Depending on the field layout, well architecture, required pump rates, treatment volumes, and available infrastructure, these operations can be performed. For subsea wells without a rig on location, several methods are available for stimulation and hydraulic intervention operations.
One option is to mobilize a Light Well Intervention Vessel (LWIV) equipped with a hydraulic intervention package. For larger stimulation campaigns, a multi-vessel configuration may be required, typically involving a dedicated stimulation vessel working together with an LWIV. In some cases, operators may utilize a vessel of opportunity fitted with pumping equipment and a hydraulic intervention system. Where field developments have been designed with future intervention requirements in mind, pre-installed subsea injection connection points on the manifold may allow direct tie-in to the injection system with minimal additional subsea hardware.
The selected intervention method depends largely on the type of injection operation being performed, the required pumping pressure and flow rate, water depth, vessel capabilities, and the overall field configuration.

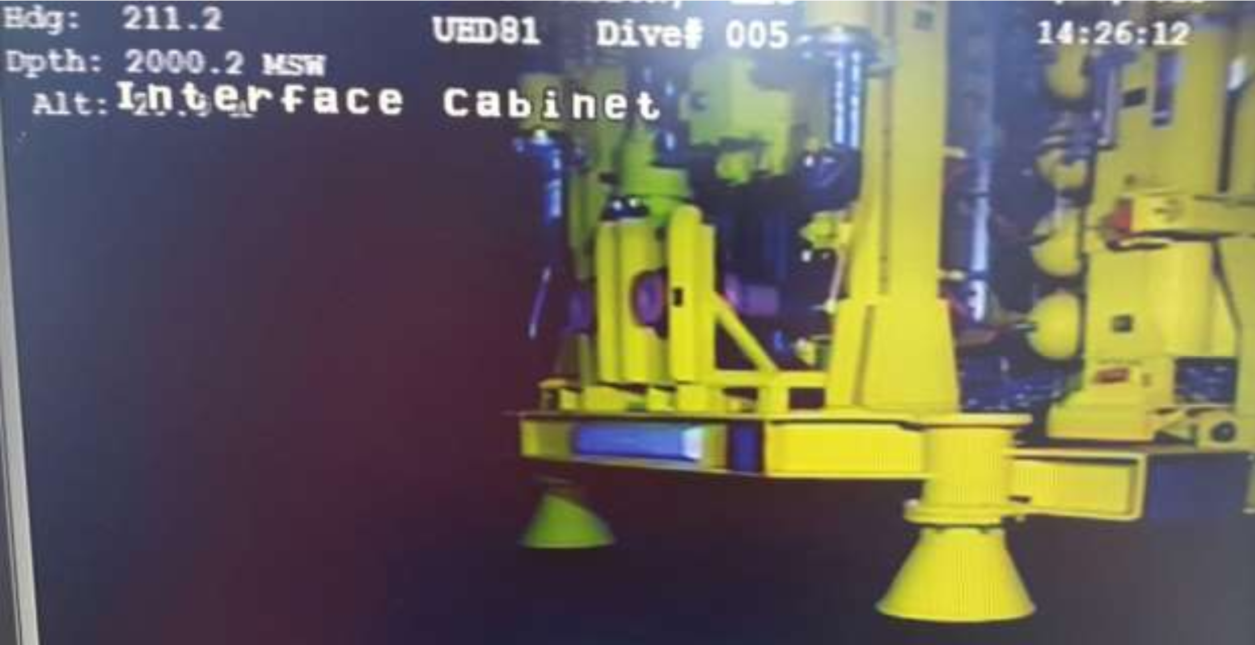

Subsea Hydraulic Intervention and Stimulation Systems
A number of specialized systems are currently available across the industry for subsea stimulation and hydraulic intervention applications.
Baker Hughes – Fluid Intervention System
Baker Hughes provides subsea fluid-intervention solutions to support stimulation, chemical injection, and well-remediation operations in subsea environments. These systems are typically configured to enable efficient fluid delivery into subsea trees and manifolds while minimizing vessel time and operational complexity.
Oceaneering Well Stimulation Systems
Oceaneering International offers the Well Stimulation Tool with Rapid Access Tool (WST/RAT), designed to provide subsea access for stimulation and intervention operations. The system enables connection to subsea trees for pumping stimulation fluids while allowing rapid deployment and recovery. It is commonly used for acid stimulation, scale removal, and production enhancement treatments.
Caltex Oil Tools – Hydraulic Stimulation System
Caltex Oil Tools provides hydraulic stimulation systems intended for subsea pumping and intervention applications. These systems are generally designed to support fluid-injection operations that require controlled high-pressure pumping into subsea wells.
Enpro Subsea Flow Intervention System (FIS)
Enpro Subsea, part of Hunting PLC, developed the Flow Intervention System (FIS), designed for subsea well stimulation and fluid pumping operations. The system facilitates controlled delivery of fluid for intervention to subsea wells while supporting vessel-based intervention campaigns.
Subsea Smart Solutions SSTC System
Subsea Smart Solutions offers the SSTC Subsea Well Stimulation System, which provides subsea connectivity for stimulation and chemical treatment operations. The system is designed to simplify subsea access and reduce the complexity of intervention spread during stimulation campaigns.
Trendsetter Engineering STIM System
Trendsetter Engineering developed the STIM (Subsea Tree Injection Manifold) system for subsea hydraulic intervention applications. The STIM system enables fluid injection directly into subsea trees and is intended to support stimulation, chemical treatment, and well remediation operations.
TechnipFMC – Subsea Injection Module
TechnipFMC provides subsea injection modules designed for intervention and stimulation operations. These modules are typically integrated into subsea production systems to facilitate chemical injection and fluid delivery into wells and manifolds.
OneSubsea SMIS System
OneSubsea offers the Subsea Modular Injection System (SMIS) together with the MARS (Multiple Application Reinjection System). These systems are intended for subsea chemical injection, stimulation, and reinjection operations across various intervention scenarios.
2. Conduits and Downline Systems
Conduits, commonly referred to as downlines, are available in a variety of configurations and sizes depending on the pumping requirements and operational environment. These may range from conventional coiled tubing systems to advanced thermoplastic composite pipes designed for deepwater service.
The pumping contractor typically supplies the downlines together with the associated hydraulic reels and deployment equipment. Selection of the conduit system depends on several factors, including pressure rating, fluid compatibility, bending radius limitations, deployment depth, required flow rate, and operational handling requirements.
Thermoplastic composite pipe systems are increasingly used in subsea intervention applications due to their reduced weight, improved corrosion resistance, and easier vessel handling characteristics compared with conventional steel coiled tubing systems.
3. Emergency Quick Disconnect (EQD) Systems
An important safety requirement during subsea hydraulic intervention operations is the use of Emergency Quick Disconnect (EQD) systems installed on downlines and associated subsea hardware.
These connectors serve a function similar to that of the emergency disconnect systems used on COFLEX hoses aboard stimulation vessels. In the event of vessel drift-off, drive-off, loss of position, or severe weather conditions, the EQD system allows rapid disconnection of the subsea pumping line to protect subsea infrastructure, vessels, and personnel.
Depending on the application, EQD systems may be passive or active in design:
Passive systems typically disconnect automatically once a predetermined load or tension threshold is exceeded.
Active systems are normally hydraulically or electrically actuated and can be remotely triggered by operators.
The choice of connector depends on water depth, pressure rating, required flow capacity, intervention philosophy, and emergency response requirements.
4. Available EQD Connector Systems
Blue Logic Auto Release Systems
Blue Logic provides Auto Release Systems and large-bore hot-stab connectors for subsea fluid transfer and hydraulic intervention applications. These systems are intended to enable safe emergency disconnection during vessel drift-off situations while maintaining operational reliability.
Flint Subsea Ltd
Flint Subsea Ltd offers several intervention-related connector systems, including Mid-Line Weak Link EQDs, Well Kill Connectors, and EQD skids. These systems are designed to provide controlled disconnection capability during subsea pumping and intervention operations.
SECC Oil & Gas Connector Systems
SECC Oil & Gas supplies Hot Make Hot Break connectors, gimbal systems, and Mid-Line Weak Link connectors intended for subsea well intervention and stimulation activities. These systems are designed to support fluid-transfer operations while maintaining emergency-disconnect capability under dynamic offshore conditions.
5. Operational Considerations
Successful subsea hydraulic intervention operations require careful planning and integration between subsea equipment providers, pumping contractors, vessel operators, and field operators. Key considerations include:
Required stimulation pressure and flow rate
Water depth and environmental conditions
Vessel station-keeping capability
Emergency disconnect philosophy
Compatibility with existing subsea trees and manifolds
Flow assurance and fluid compatibility
Intervention duration and logistics
Availability of pre-installed injection infrastructure
As subsea developments continue to mature and extend field life expectations, hydraulic intervention and stimulation systems are becoming increasingly important tools for maintaining production, reducing intervention costs, and minimizing the need for expensive rig-based workovers.
References
Subsea Smart Solutions – SSTC Subsea Well Stimulation System
OneSubsea – Subsea Modular Injection System (SMIS)
