Geothermal and Oil & Gas Wells: A Technical Comparison

                                                              Your Comments

1. Introduction

Drilling technologies used in oil & gas have provided the foundation for geothermal well development. While geothermal and oil & gas drilling share surface-level similarities, rotary rigs, mud systems, casing, and cementing, they diverge fundamentally in subsurface challenges and engineering priorities.

Oil & gas drilling focuses on pressure control and hydrocarbon recovery, whereas geothermal wells prioritize thermal resilience and long-term integrity to harness heat sustainably. Establishing geothermal as a baseload energy resource depends on adapting, but not merely transplanting, oil & gas drilling engineering into a far more extreme environment.

This article highlights the key differences, engineering requirements, and operational considerations that distinguish geothermal wells from oil & gas wells.

2. Objectives of Drilling

Oil & Gas Wells: Designed to locate and extract hydrocarbons, oil, gas, and condensates through exploratory, appraisal, or production wells. Design metrics include reservoir productivity, well deliverability (e.g., production rates), and recovery factor, with economic viability measured by the net present value (NPV) of recoverable reserves. The wellbore provides controlled access to reservoirs, aiming for efficient production and maximum recovery factor.

Geothermal Wells: Target hot water or steam from deep reservoirs to generate electricity or supply direct-use heat. Emphasis lies on sustainable energy extraction, managing reservoir heat withdrawal over decades, ensuring stable well output, and integrating reinjection systems to maintain reservoir pressure and thermal recharge. The design focuses on ensuring long-term heat extraction rather than maximizing flow efficiency alone.

3. Site and Location Preparation

Oil & Gas: Include infrastructure for Pad construction, access roads, waste pits, mud disposal, hydrocarbon handling, flare stacks, pipelines, designed with hydrocarbon logistics in mind (pipelines, tanks, separators), with environmental mitigation measures such as baseline surveys.

Geothermal: Location preparations consider steam/brine handling, feature requirements for reinjection well placement, and environmental restrictions. Geothermal pads often require additional space for surface facilities for steam gathering systems, separators, cooling towers, and reinjection infrastructure. Environmental preparations must address induced seismicity, groundwater protection, and subsidence from reinjection processes.

4. Drilling Rig

Both geothermal and oil & gas wells use rotary drilling rigs. However:

Oil & Gas: Rig specifications depend on depth and expected pressures. HPHT wells demand specific rig ratings with advanced equipment for control of extreme pressure and temperature.

Geothermal: Rigs must handle high-temperature downhole conditions. Mud pumps and circulation systems must withstand abrasive, silica-rich fluids and endure temperatures up to 350°C. Rig selection often prioritizes torque for abrasive volcanic or fractured hard rock drilling and cooling capacity for equipment exposed to sustained high heat. Equipment, including elastomers and motors, needs HT (high-temperature) rated components to resist rapid degradation.

5. Well Planning

Oil & Gas: Heavily reliant on seismic interpretation, reservoir engineering and modeling, pore pressure, and fracture gradient predictions. Directional and horizontal drilling to optimize hydrocarbon contact.

Geothermal: Well trajectories are planned for thermal gradient, naturally fractured zones, and permeability. Wells are often deviated to intersect fractured zones with maximum permeability and usually aim to intersect maximum fracture density. Reinjection well placements are planned early to ensure balanced subsurface pressure and thermal budgeting.

6. Environmental Restrictions

Oil & Gas: Regulations focus on spill prevention, flaring, waste management, and emissions. OBM/SBM use is accepted in many regions under strictly controlled disposal rules.

Geothermal: Environmental rules prohibit OBM/SBM. Produced brines may contain dissolved solids, heavy metals, and corrosive constituents (CO₂, H₂S, boron, silica). Produced fluids frequently carry corrosive constituents (CO₂, H₂S, boron, silica), mandating reinjection and careful disposal to protect groundwater and the surface environment.

7. Surface Facilities

Oil & Gas: Facilities include wellheads, separators, tanks, flowlines, compressors, gas flaring systems, and pipeline networks to process hydrocarbons.

Geothermal: Surface systems require steam separators, scrubbers, reinjection pumps, and turbines or binary generation systems capable of handling thermal erosion and scaling from silica-rich fluids. Wellheads must withstand two-phase flow (steam + brine) and resist scaling/erosion.

8. Formations and Reservoirs

Oil & Gas: Porous and permeable formations sealed by structural or stratigraphic traps. Reservoirs operate under pressure, often supported by water drive, gas cap, or artificial lift, and engineered stimulation.

Geothermal: Reservoirs are typically fractured or hot dry rock formations with natural or induced permeability. Enhanced Geothermal Systems (EGS) require hydraulic stimulation to create fractures for heat transfer. Reservoirs are defined by thermal properties and fracture networks rather than porosity.

9. Pressure and Temperature Environment

Oil & Gas: Wells generally operate below or around 150°C; HPHT wells exceed this. Well control and pressure containment are central issues.

Geothermal: Reservoir temperatures generally range between 200–350°C, with the possibility of superheated steam. High-temperature exposure affects tools, elastomers, mud motors, casing, and cement integrity. Temperature, not pressure, is the design driver and the primary challenge.

10. Drilling Program

Oil & Gas: Program emphasizes well control, BOP integrity, kick detection, and pressure window management. MWD/LWD logging, and pressure management (MPD), etc. Multiple mud systems may be deployed.

Geothermal: Planning revolves around expected lost circulation, high temperature rated downhole tools, contingency LCM strategies, and aerated drilling to manage steam zones. Simpler WBM (Water Base Mud) systems are used. Planning includes mitigation for thermal stress, corrosion, and reinjection well coordination.

11. Cost Overview

Oil & Gas: Costs vary with depth, location, and rig type. Offshore projects often cost hundreds of millions; onshore conventional wells cost between $5–$10 million; offshore deepwater wells can exceed $100 million.

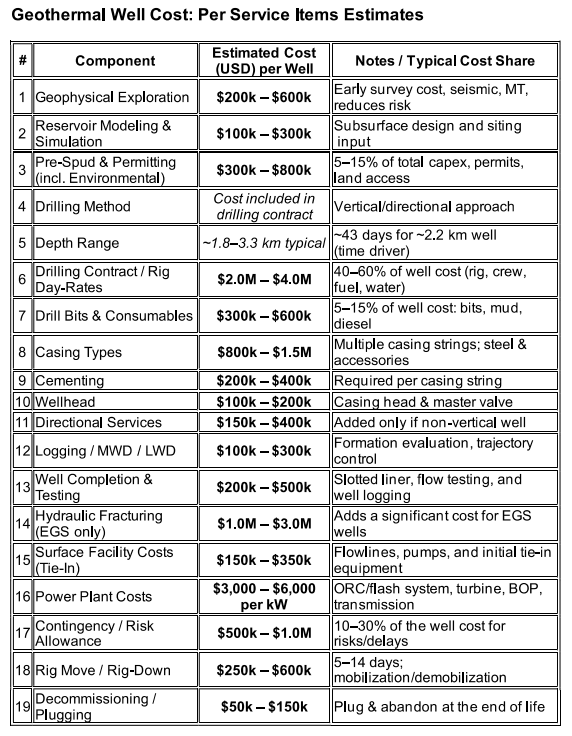

Geothermal: Typical geothermal wells cost between $5 and $12 million, estimated, with exploration risk and drilling challenges leading to non-producer rates of up to 40%. The cost is considered high due to the severe and low drilling success rate. According to cost-distribution studies, the drilling program makes up ~40% of total well cost; fixed site prep ~8–12%, service operations ~23–27%, and completion ~4–6%

12. Drilling Operations

Oil & Gas: Use of sophisticated MWD/LWD, managed pressure drilling, mud logging, real-time data for well control, and casing while drilling. Formation pressures and instability drive time and cost.

Geothermal: Operations focus on cooling equipment, mitigating lost circulation, and using high-temp downhole tools. Continuous circulation systems and aerated drilling are sometimes applied. Downhole electronics degrade rapidly above ~175–200°C; thus, mechanical and fiber-optic systems are used. Abrasive formations demand frequent bit changes; steam zones complicate drilling fluid management.

13. Operational Drilling Risks & Problems

Oil & Gas Risks and common issues: kicks, Blowouts, stuck pipe, sour gas (H₂S), differential sticking, wellbore instability, lost circulation etc.

Geothermal Risks: Severe loss of circulation, stuck pipe in fractured zones, casing stress and collapse from thermal cycling, scaling/corrosion, and tool failure due to temperature limits.

14. Casing & Cementing Design

Oil & Gas: Steel grades and cement blends selected mainly for pressure and zonal isolation.

Geothermal: Casing requires high thermal expansion tolerance, thicker walls, and corrosion-resistant materials. Casing must tolerate cyclic thermal loading, which weakens yield strength, reduces burst/collapse resistance, and risks structural failure. Advanced modeling (finite-element analysis) helps simulate casings’ thermo-mechanics.

Elevated temperature reduces material strength and increase buckling risk in unsupported sections; expansion and yield deration induced stresses are key failure mechanisms.

Cement blends (silica flour, pozzolans) must withstand temperatures above 300°C without resulting in micro-annuli.

15. Drilling Fluid Design

Oil & Gas: Engineered muds (WBM, OBM, SBM) for pressure, shale inhibition, and formation protection.

Geothermal: Employs only simpler water-based muds. Often, bentonite or polymer-based OBM and SBM are prohibited. Must prevent borehole collapse while tolerating severe circulation losses. No oil-based muds allowed.

High-temp testing showed WBMs become viscous and corrosive above ~350 °F (~175 °C), while OBMs performed better but still degraded above 450–500°F (~230–260 °C).

Aerated drilling offers a solution for steam zones and severe loss conditions.

16. Well Completion

Oil & Gas: Tubing strings, packers, perforations, stimulation, artificial lift, smart completions.

Geothermal: Typical completions use open-hole or slotted liners, with natural flow of steam/brine. Minimal hardware are deployed to avoid damage from scaling and thermal stress.

Casing and cement sheath are completely bonded to handle thermal cycles.

Brine chemistry may require exotic materials (e.g., titanium at $1,000/ft) due to corrosion.

17. Production

Oil & Gas: Declines with reservoir pressure; EOR and artificial lift maintain output.

Geothermal: Can last decades if reinjection sustains reservoir pressure. Key challenges include silica and carbonate scaling, which reduce flow and require periodic well interventions (e.g., jetting or underreaming)

Production is limited by scaling, corrosion, and temperature decline.

18. Key Considerations for Geothermal Wells

• High-Temperature Environment → Use HT tools, bits, motors, and elastomers.

• Lost Circulation → specialized LCM, staged cementing, and contingency planning are essentials.

• Wellbore Stability → Mud weight balance is critical, strong enough to support but not seal fractures.

• Casing Strategy Design → involves heavy, thermally resilient string design, thicker casing, tie-back options, and thermal stress design.

• Cementing → must withstand temperatures above 300°C, cements with silica, pozzolans; thermal cycle durability.

• Environmental Restrictions → strict on mud and brine handling.

• Reservoir Management → Reinjection systems to maintain pressure and prevent subsidence are required from the design phase.

• Surface equipment must handle thermal stresses and scaling.

• Surface Facilities → designed for two-phase flow, scaling, and erosion resistance.

Conclusion

Oil & Gas and Geothermal drilling, both industries share rigs and drilling practices, yet are governed by distinct engineering imperatives: pressure containment vs thermal endurance. Scaling geothermal energy depends on the intelligent adaptation of oil & gas expertise, integrated with HT materials, robust design under thermal loads, and sustainable reservoir management, to meet the challenges of extreme downhole environments.

Oil & gas drilling is fundamentally pressure-driven; geothermal drilling is temperature-driven. Geothermal requires specialized designs for thermal endurance, corrosion resistance, and reservoir sustainability. As global demand for renewable energy rises, the adaptation of oil & gas expertise to geothermal drilling will be critical.
