Drilling Fluids Essentials: A Comprehensive Guide for Oil & Gas Wells Drilling Operations

                                                              Your Comments

This technical, shared knowledge is intended to be used as a practical, technically accurate, and readable reference for drilling engineers, mud engineers, field supervisors, or consultants planning or supervising well-site mud programs who need a trusted, field-ready explanation of drilling fluids, and their additives.

This summary outlines standard industry practices, including common additive types (with generic product names), key functions and properties to monitor, and guidance on selection and handling. Wherever helpful, references to industry resources are given at the end.

1. Executive Overview of Drilling Fluids

Drilling fluids, often referred as drilling mud, are not just a consumable product; they are a core engineering tool in drilling operations, performing several critical roles that enable safe and efficient drilling. They carry cuttings to the surface, maintain wellbore stability, control formation pressures via hydrostatic head, cool and lubricate the bit and BHA, transmit hydraulic energy, and protect productive formations by managing fluid invasion. The choice of base fluid (water, oil, synthetic, gas/foam) and the additive package (weighting materials, viscosifiers, fluid loss control agents, shale inhibitors, etc.) is driven by the well's geology, formation pressures, temperature, environmental constraints, and operational goals.

Well-designed mud programs use continuous monitoring (density, rheology, solids content, filtrate, pH, etc.) and solids-control equipment to keep the system within operational windows; In contrast, the wrong ones can cause non-productive time, stuck pipe, lost circulation, or even a blowout.

A well-chosen drilling fluid must:

• Maintain pressure balance (hydrostatic head vs. formation pressure).

• Preserve wellbore integrity under varied lithologies.

• Protect the reservoir against formation damage.

• Enable directional and extended-reach drilling by stabilizing cuttings transport and minimizing friction.

• Comply with environmental standards while being cost-effective.

Industry statistics show that up to 50% of drilling problems are linked in some way to the drilling fluid program. Therefore, mud design, testing, and maintenance are critical throughout the entire drilling process, from spud to TD.

2. Core functions of drilling fluids

Drilling fluids perform multiple, interconnected functions, each of which must be balanced against others. A properly engineered drilling fluid is used to:

Transport cuttings from the bit to the surface and keep them suspended when circulation stops.

• High annular velocity is not enough on its own; viscosity and gel strengths are designed to lift and suspend solids even during pump-off periods.

• In horizontal wells, cuttings transport becomes more challenging due to well profile and reduced buoyancy; thus, low-shear rheology is critical.

Balance or control formation pressure (hydrostatic head) to prevent kicks or lost circulation.

• Hydrostatic head is maintained using the density of the mud.

• Too light → risk of kick/blowout. Too heavy → lost circulation or formation fracturing.

• Equivalent circulating density (ECD) is often as critical as static mud weight. Stabilize the wellbore (prevent sloughing, sloughing/shale swelling, and hole collapse).

Minimize fluid loss into permeable intervals and protect productive zones.

• Filtrate Control/Formation Protection

• The filtrate that enters the formation can damage permeability by swelling clays, mobilizing fines, or plugging pores.

• Thin, impermeable filter cakes are the goal.

Cooling and Lubrication

• Reduce torque/drag and wear by cooling and lubricating the bit, drill string, BHA, and motors as they generate substantial heat and friction, prolonging the life of the bit and tools.

Wellbore Stability

• Reactive shales hydrate and swell if fluids are not properly inhibited.

• Sandstones and carbonates may collapse or wash out without proper fluid-loss control.

Hydraulics and Energy Transfer

• Fluids carry hydraulic energy to drive mud motors, turbines, and rotary steerables.

• Hydraulics optimization improves ROP and extends bit life.

• Support downhole operations (cementing, logging, completion) and preserve formation integrity for production.

3. Types of drilling fluids (base systems)

3.1 Water-based muds (WBM)

This is the most common and most varied group. Water (fresh, brine, or seawater) is the continuous phase (fresh, brackish, seawater, or brine) with clays, polymers, salts, and chemical additives to provide rheology, inhibition, filtration control, and weighting.

WBMs are economical and easier to handle and dispose of in many jurisdictions.

• Strengths: Cost-effective, easy disposal, widely understood.

• Weaknesses: Limited inhibition in high-reactive shales, poor lubricity compared to OBM.

• Typical Uses: Shallow sections, environmentally sensitive areas, conventional vertical wells.

3.2 Oil-based muds (OBM)

OBM has oil as the continuous phase (diesel, mineral oil, or synthetic hydrocarbon). OBMs provide excellent shale inhibition, lubrication, and thermal stability, but have higher environmental and handling constraints. Their use is regulated and often limited by environmental rules.

• Composition: Continuous oil phase (diesel, mineral oil) with an internal water/brine phase.

• Strengths: Superior inhibition, lubrication, and thermal stability; excellent for high-angle wells.

• Weaknesses: Cost, complex waste handling, and environmental restrictions.

• Typical Uses: High-temperature wells, extended reach, deepwater, unstable shale formations.

3.3 Synthetic-based muds (SBM or NAF, non-aqueous fluids)

Synthetics (esters, polyalphaolefins, etc.) combine many performance benefits of OBMs (shale stability, low fluid loss) with improved biodegradability and reduced toxicity. SBMs often replace OBMs when environmental restrictions apply.

• Composition: Synthetic hydrocarbons (esters, olefins, paraffins).

• Strengths: Offers similar performance to OBM with lower toxicity and improved biodegradability.

• Weaknesses: Costlier than WBM; waste treatment is required.

• Typical Uses: Offshore environments have restricted OBM use due to environmental sensitivities.

3.4 Gaseous/foam systems/air and mist

Used in underbalanced or low-pressure wells (air drilling, mist, foam). These systems reduce formation damage and allow faster penetration, but require careful control of downhole pressures and cuttings removal.

• Air Drilling: No liquid phase, used in hard rock or depleted zones.

• Mist/Foam Drilling: Minimal liquid phase; improves cuttings transport.

• Strengths: Very high ROP, minimizes fluid invasion, reduces formation damage.

• Weaknesses: Limited pressure control, specialized equipment required.

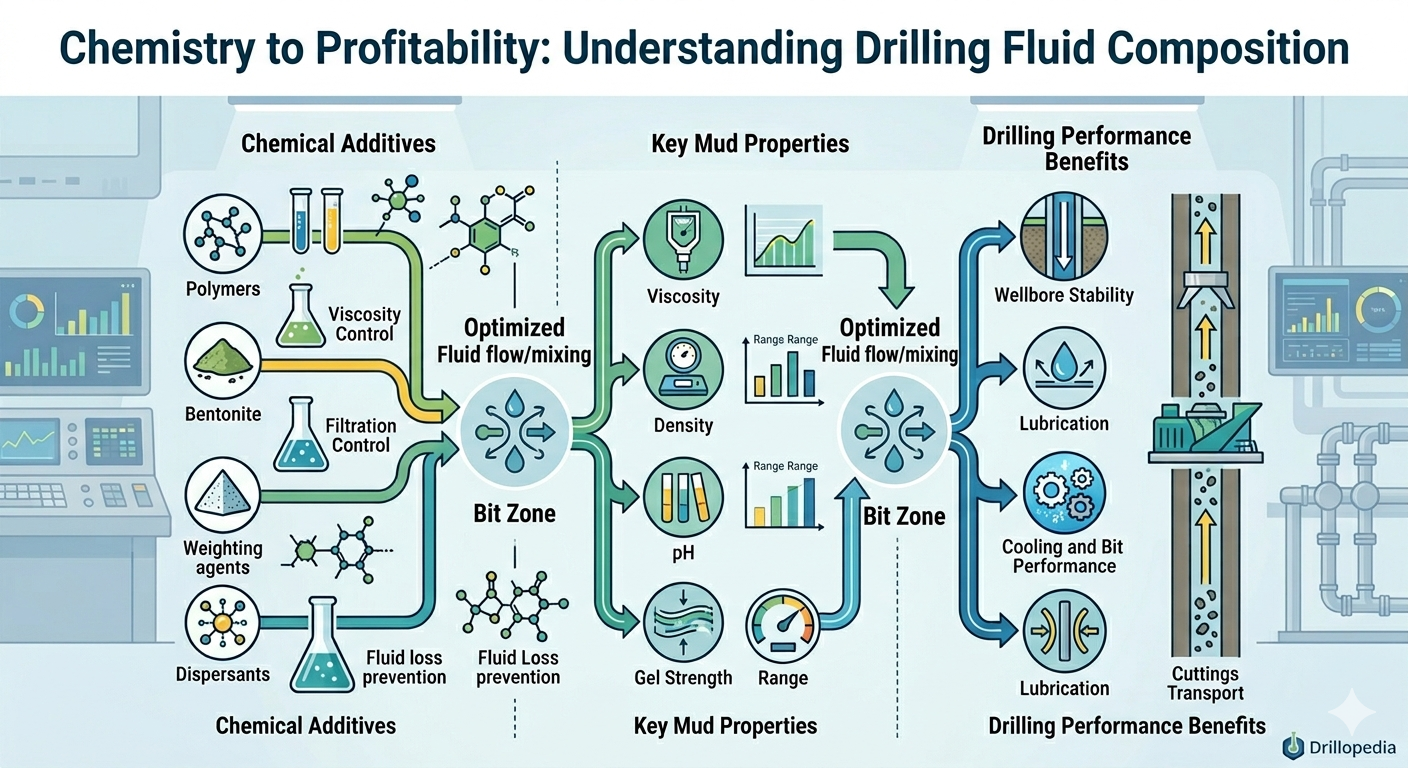

4. Common additive classes, generic product names, and purpose

Below are the typical additive types you will see on a product data sheet, with generic names and their practical purpose.

4.1 Weighting agents

• Barite (barium sulfate): the standard weighting agent to increase mud density (hydrostatic pressure control). Used to achieve and maintain the target mud weight.

• Calcium carbonate (sized CaCO₃): bridging/weighting and sometimes used in lost-circulation packs; useful when barite sag or high density is undesirable.

• Ilmenite (iron-titanium oxide): used where very high densities are required or where barite's specific gravity is not sufficient.

Purpose: hydrostatic pressure control on formation; selection based on desired density, particle shape, hardness, and solids-control compatibility.

4.2 Viscosifiers/gelling agents

• Sodium bentonite (also known as attapulgite in some regions) is a clay used to build low-shear viscosity and gel strength for cuttings suspension.

• Xanthan gum: high-temperature biopolymer viscosifier (often in polymer-enhanced WBM).

• Polyanionic cellulose (PAC) and carboxymethyl cellulose (CMC) are water-soluble polymers that modify viscosity and help control fluid loss.

Purpose: provide viscosity and gel strength for hole cleaning and cuttings suspension; tune rheology across shear rates.

4.3 Fluid loss control agents (FLAs)

• PAC-LV (low viscosity polyanionic cellulose), starch, sized calcium carbonate, lignosulfonates, and asphaltic/latexes (in OBM/SBM).

Purpose: reduce filtrate invasion into the formation by building a thin, low-permeability filter cake.

4.4 Shale stabilizing inhibitors

• Potassium chloride (KCl): classic shale inhibitor (ions reduce clay swelling).

• Glycols, alcohol derivatives, amine salts, and glycols: used in inhibitive WBMs.

• Sorbitol derivatives or specialty amines form a chemical shield on clay surfaces.

Purpose: prevent shale hydration, swelling, sloughing, and dispersion; essential in reactive shale sections.

4.5 Emulsifiers/wetting agents/surfactants

• Amine soaps, sorbitan esters, non-ionic/anionic surfactants.

Purpose: In OBM/SBM, these maintain stable oil-in-water or water-in-oil emulsions; surfactants also help cleaning, wetting, and gas handling.

4.6 Lubricants

• Asphaltic oils, fatty-acid esters, esters/polyglycols: reduce friction between drill string and borehole, reduce torque and stick-slip.

4.7 Corrosion inhibitors & oxygen scavengers

• Amine or imidazoline-based inhibitors: protect tubulars and downhole equipment from corrosion.

• Sodium sulfite and other oxygen scavengers: remove dissolved oxygen to reduce corrosive conditions.

4.8 Biocides

• Glutaraldehyde, bronopol (and other industry-approved biocides): control bacterial growth that can sour fluid, alter rheology, or produce hydrogen sulfide.

4.9 Defoamers/defoamants

• Silicone-based or organic polymer defoamers: control foaming, which can interfere with solids control and tank management.

4.10 Lost circulation materials (LCM)

• Fibers (cellulosic, synthetic), flakes (mica), granulars (sized calcium carbonate), bridging agents (sawdust/cellulose), cementitious blends.

Purpose: to plug high-permeability or fractured zones and stop mud losses; selection depends on loss severity and fracture width.

5. Key mud properties and how they map to performance

All field labs monitor a handful of core properties; these control operational decision-making:

• Density (mud weight, lb/gal or kg/m³): Determines hydrostatic head. Controlled within ±0.1 ppg. Controls hydrostatic pressure. Adjust with weighting agents (barite).

• Viscosity/Rheology (plastic viscosity PV, yield point YP, gel strength): governs cutting transport and pump pressures.

  • Plastic Viscosity (PV): Indicates solids loading; high PV often means excess drilled solids. PV gives shear-related internal flow resistance.

  • Yield Point (YP): indicates carrying capacity. Governs hole cleaning; low YP leads to poor cuttings transport.

  • Gel Strengths (10 sec/10 min/30 min): Measure the fluid's ability to suspend cuttings. Excessive gels → surge/swab issues.

• Filtrate (API filtrate or HTHP filtrate): volume of fluid lost through a standard filter under pressure and temperature; used to assess invasion potential. The target is <10 mL in the standard API test for WBMs.

• pH: affects additive performance, corrosion, and clay behavior; it is controlled with lime or caustic. Typically maintained at 9.5–11. Controls clay behavior and corrosion.

• Solids content (total and active solids, % > 74 µm): Measured by retort; excessive low-gravity solids impair ROP and hydraulics. Affects equivalent circulating density, loss of rheology, hole cleaning, and ECD.

• Electrical conductivity and chloride content (for WBMs): indicate ionic strength and inhibitor levels.

• Cuttings recovery/size distribution and particle size analysis (laser/settling): ensure solids control is effective.

6. Solids control, Fluids maintenance, and treatment

• Effective solids control preserves the fluid's designed properties and reduces waste:

• Primary stages, First Defense: Shale Shaker (removes coarse solids), screen mesh size is critical, Hydrocyclones Desander/Desilter (remove fine sand and silt), Centrifuge (removes ultra-fines; used in closed-loop systems), and bags/filters.

• Treatments include dilution (adding make-up fluid, which is sometimes cheaper and more effective than chemical treatment), reducing solids (using dispersants/lignosulfonates), or active removal through centrifugation.

• Treatment Strategy: Prevent solids accumulation instead of constantly correcting.

• When to recondition vs. replace: when drill solids or contamination (salt, oil, H₂S, heavy metals) exceed the designed tolerance or when critical properties (e.g., density or filtrate) cannot be recovered by treatment.

7. Formulation principles & selection guidelines

When designing a mud program:

• Design Principles Wellbore Pressure Window: Between pore pressure and fracture gradient.

• Define the objectives by well section (surface, intermediate, reservoir), including maximum allowable mud weight, acceptable filtrate invasion, and environmental constraints.

• Characterize the geology: reactive shales, high permeability zones, over-pressured zones, or lost circulation risk dictate inhibitor choice, LCM availability, and maximum mud weight.

• Lithology: Shale → inhibitors; depleted zones → lightweight systems; carbonates → bridging agents.

• Specify temperature and pressure conditions: HPHT wells require high-temperature polymers (thermally stable polymers), and SBMs/OBMs may be preferred.

• Drilling Objectives: Directional wells require lubricity and suspension; vertical wells often prioritize cost

• Consider operational needs: extended reach/horizontal sections require superior hole cleaning and low torque lubricants.

• Environmental Rules: Offshore requires discharge-approved chemicals in drilling fluid; land wells may allow OBM with cuttings burial. Plan waste management and regulatory compliance: some base stocks and additives are restricted or require special disposal.

8. Environmental, regulatory, and disposal considerations

Oil Base Muds (OBM) and some organics are controlled due to biodegradability and toxicity concerns; disposal, on-site pits, or cuttings treatment may be regulated. Synthetic oil Base Muds (SBM) were developed to reduce the environmental impact.

Drilling wastes (used fluids, cuttings) must be managed per local regulators (e.g., EPA rules in the U.S. for exploration and production waste), and treatment or landfarming practices may be limited or require permits.

• Waste Streams: Used mud, cuttings, tank wash, contaminated soil.

• Disposal: Options include landfarming, cuttings reinjection, thermal desorption, or permitted discharge.

• Safety Hazards: Caustics (NaOH, lime) can cause burns, barite dust inhalation risk, OBM vapors are flammable, PPE and ventilation are critical.

9. Typical field procedures & lab testing (minimum)

A robust field QC program should include:

• Daily checks: verify that the programmed mud weight is correct, check the mud weight against pore and fracture pressures, Marsh funnel time (field viscosity), PV/YP (Fann viscometer), pH, chloride or conductivity, and simple solids checks (shaker screen).

• Check the shale shaker screens' integrity daily.

• Trend PV/YP, rising values often indicate cuttings buildup.

• Maintain solids under 5–6% LGS by volume.

• Weekly as required: API filtrate and HTHP filtrate tests, cation/anion sweeps (inhibitor level checks), particle size distribution, rheology across multiple shear rates, and bacteriological tests if biocide is used.

• Always keep LCM pills prepared in high-loss areas.

• Before running casing: ensure that the filtrate and cake quality are within spec.

• Before critical operations (logging, cementing, testing): ensure mud is within tight specification limits (density, filtrate, solids < target).

• Keep laboratory data logged and use trend plots to catch slow drift (e.g., increasing solids or filtrate).

10. Troubleshooting: common problems & standard mitigations

• Stuck Pipe (Differential): Caused by overbalanced mud with poor filtrate control. Remedy: reduce overbalance, improve filter cake, and use spotting fluid.

• High fluid loss/thin cake: Add PAC/CMC/starch or sized CaCO₃; check for contamination with oil or high salinity that may deactivate Fluid Loss Agents (FLA).

• Shale sloughing or dispersion: Add KCl or switch to an inhibitive system (glycols, amine salts) or consider SBM/OBM in severe cases.

• Losses to formation: Select LCM blend treatment graded bridging materials, fibrous LCMs by loss type: seepage → fine CaCO₃; partial → fibrous blends; severe → cement squeeze if needed.

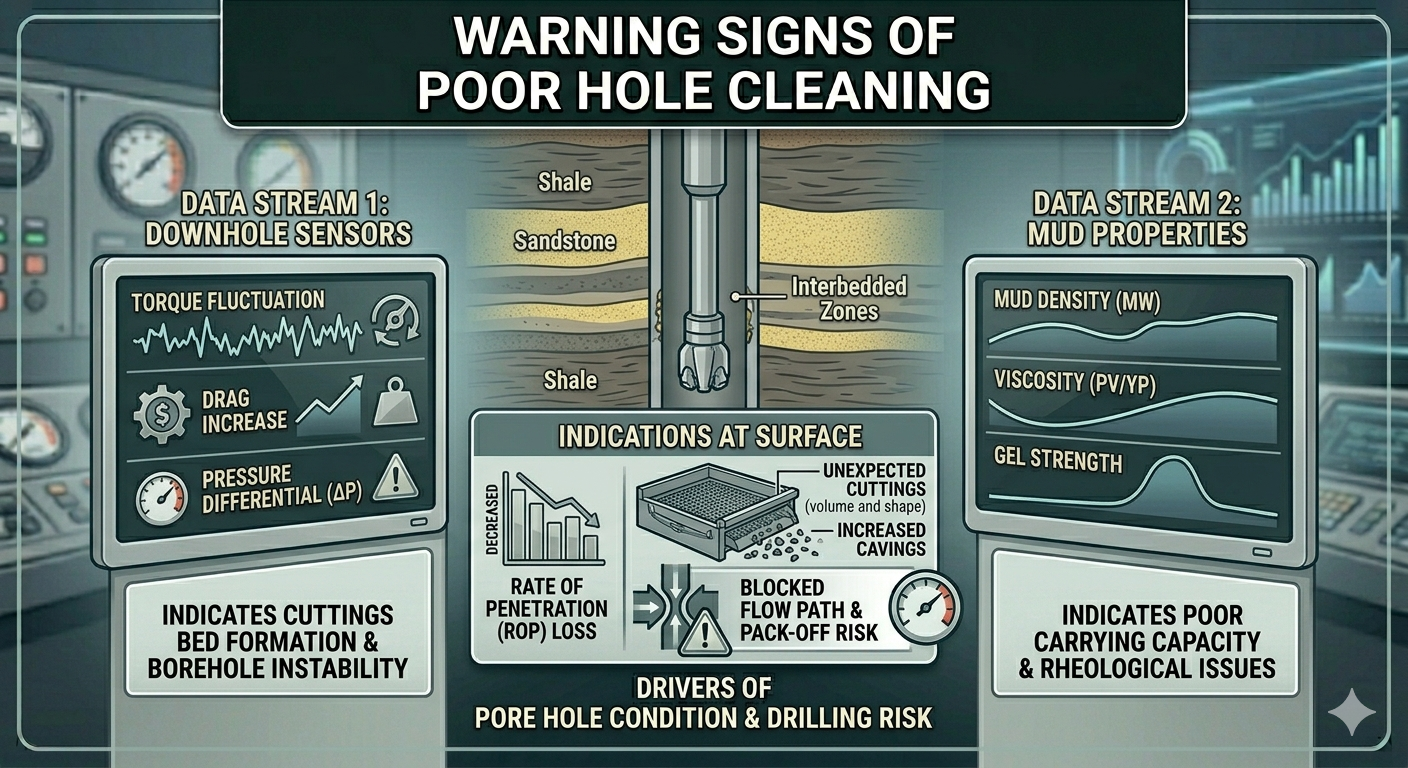

• High torque/drag or poor hole cleaning in laterals: increase rheology or yield point carefully (watch ECD), lower PV with dispersant if necessary, and add lubricants. Re-check hole cleaning, and confirm solids loading is under control.

• Barite sag (density separation): Common in deviated wells. Prevent with adequate rheology, agitation, and by using mixed particle size barite. Modify solids content, improve rheology, and use proper mixing/conditioning; consider alternate weighting materials or different particle size distribution.

• Foaming: Treat with defoamer; check for aeration or surfactant overdose.

11. Quick-reference table: Generic product name → primary purpose
